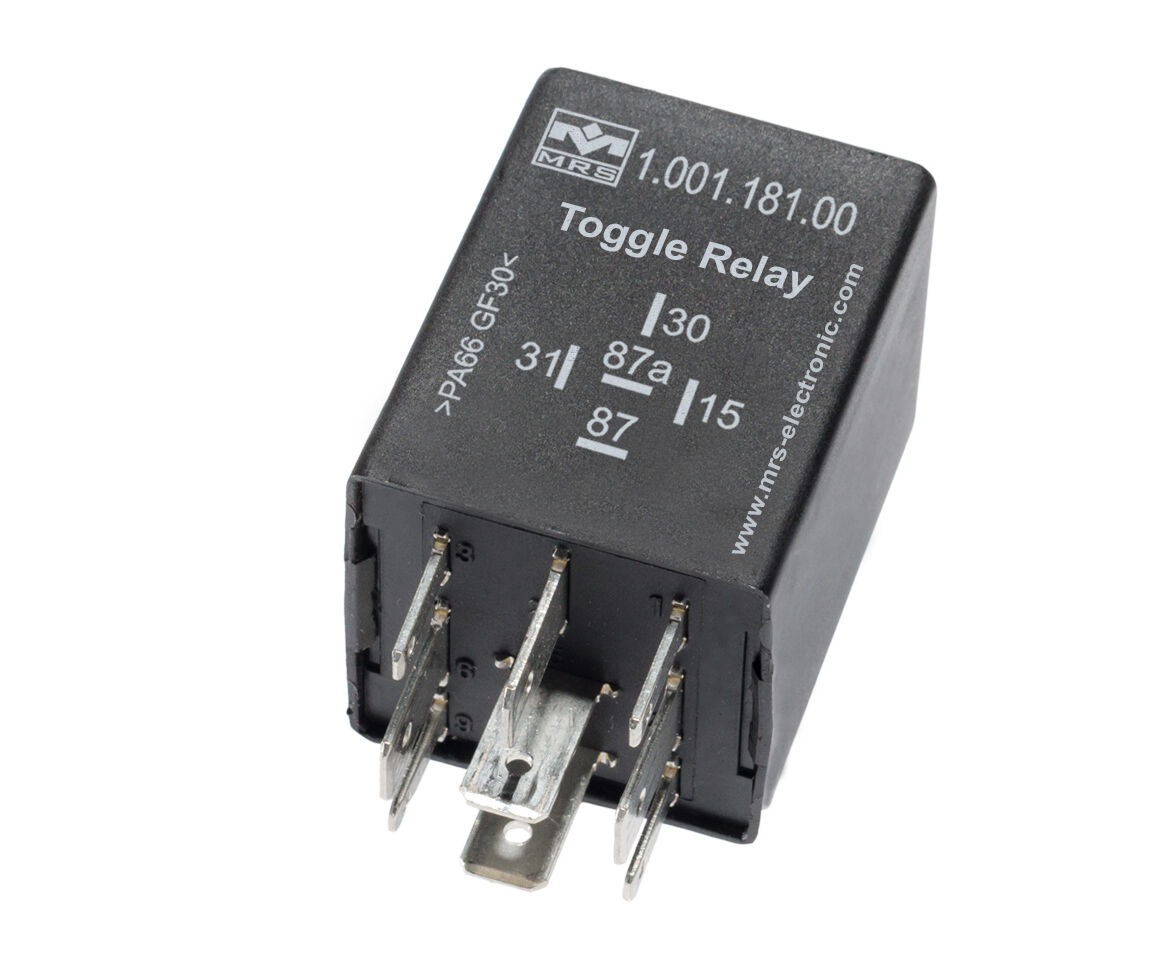

Toggle Relay 24 V
go to order options (100120x001)
The application area of toggle relays is the switching on and off of loads via push-button operation. With the toggle relay a load can be switched by a push button. If a pulse is detected at terminal 15, the relay switches and holds itself. With a further impulse it switches again. (toggle switch or toggle flip-flop). Terminal 15 is debounced. For housing types see chapter housing and base body. These toggle relays are not programmable.
Technical details
Inputs and Outputs
| Number of pins | 5 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | NC 15 A / NO 15 A |
Mechanical Properties
| IP rating | up to IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 16-32 V |
| Current consumption | NO 10 mA / NC 80 mA |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.001.200.01 (100120001) |
15/15A, KL 15, positive switching, Type A, Connection S1
|
| 1.001.202.01 (100120201) |
15/15A, KL 15, ground switching, Type A, Connection S1
|
