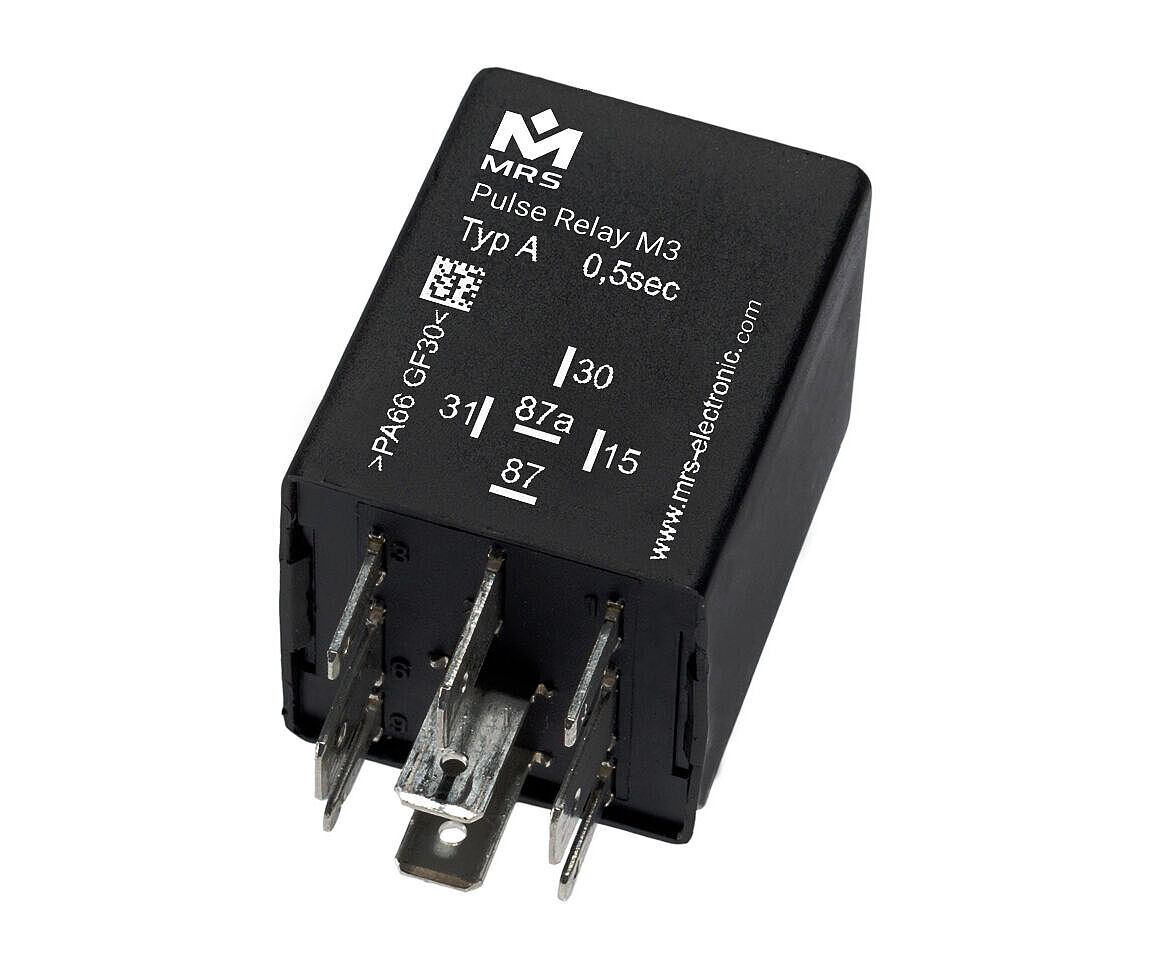

Pulse Relay M3 24 V
go to order options (100229x)

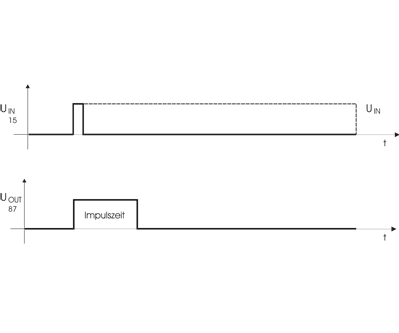

Pulse relay M3 are used when consumers are to be switched on or off for a defined time. Please specify the desired impulse time when ordering.
Technical details
Inputs and Outputs
| Number of pins | 5 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | NC 15 A / NO 15 A |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
| Switching cycles | 100000 |
Programming
| Programming software | MRS Realizer |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 14-32 V |
| Current consumption | 2 ± 1 mA |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.002.291.xx (1002291xx) |
Individual pulse time, Type A, Connection S1
|
| 1.002.292.xx (1002292xx) |
Individual pulse time, Type B, Connection S2
|
| 1.002.293.xx (1002293xx) |
Individual pulse time, Type C, Connection S3
|
