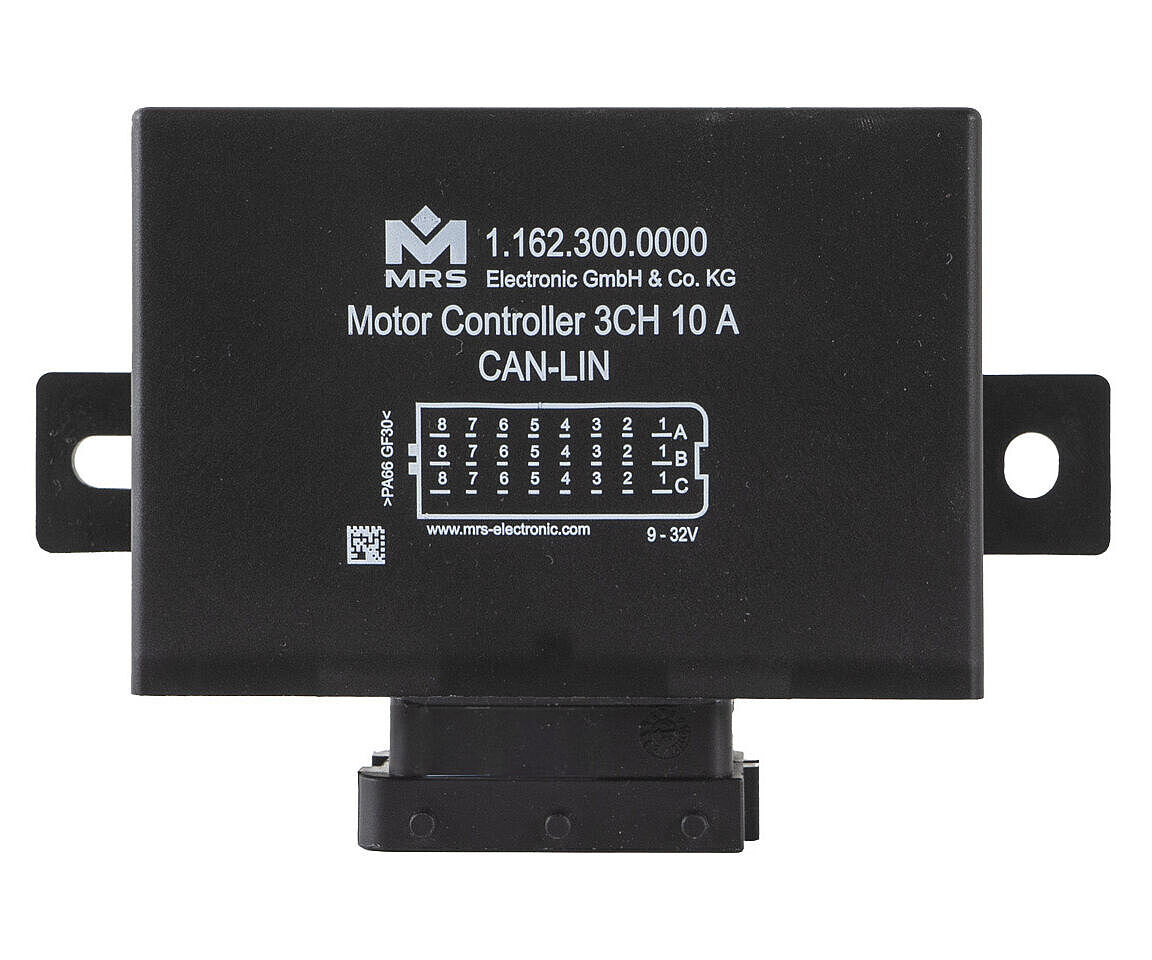

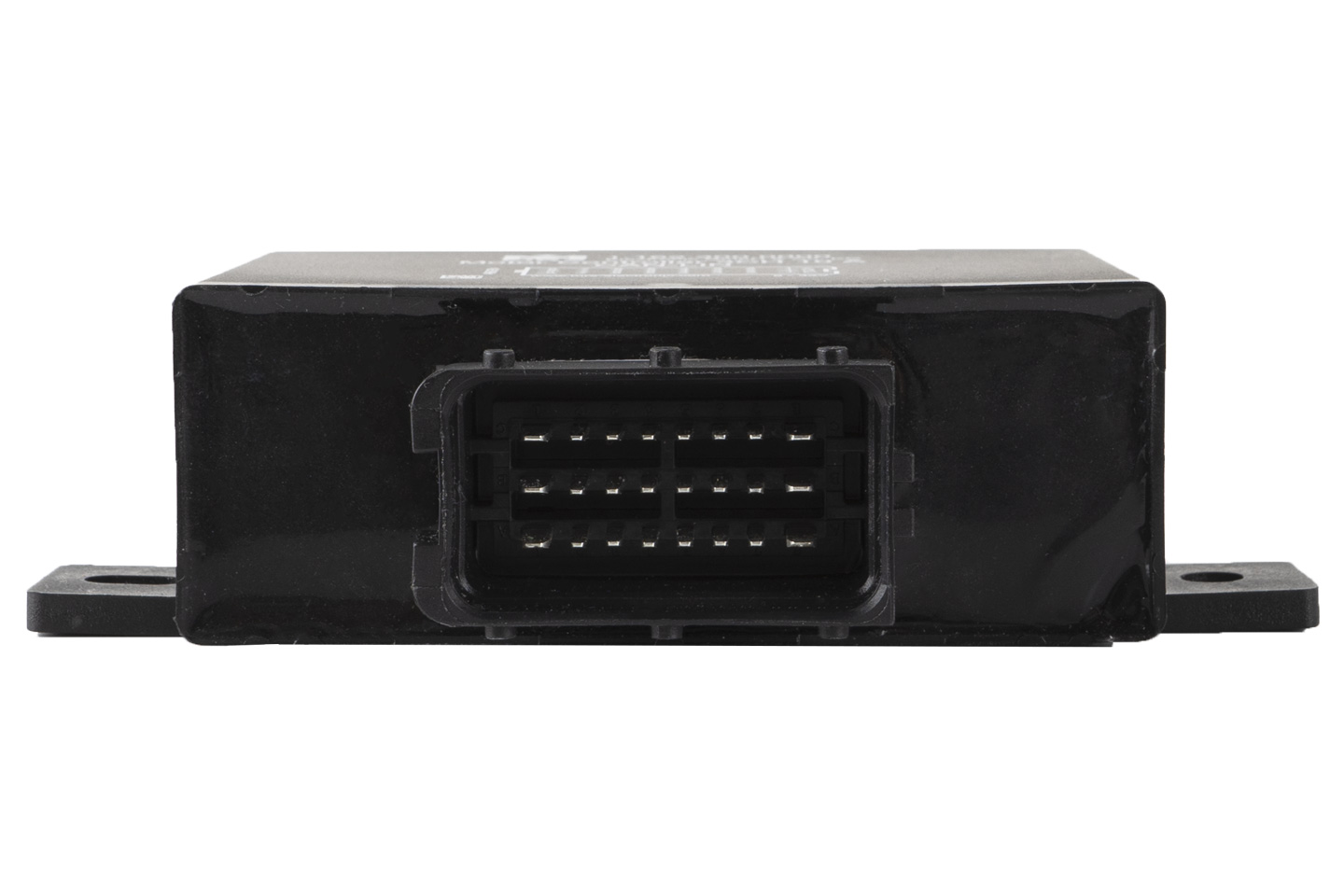

Motor Controller 3CH 10 A
go to order options (1162)
With the 3CH 10 A motor controller, you can precisely control up to three DC motors via the full bridges or up to 6 DC motors via half-bridges. The integrated ramp functions allow you to start up the motors smoothly or slow them down. The module also has 8 configurable multifunction inputs and 2 current-controlled PWM outputs, e.g. for controlling two hydraulic proportional valves.
Technical details
Inputs and Outputs
| Number of pins | 24 |
|---|---|
| In-/Outputs (total) | 16 |
| Inputs (total) | 8 |
| Inputs (analog) | 8 |
| I/Os (total) | 2 |
| I/Os (Input analog) | 2 |
| I/O (Output PWM capable, integrated current measurement INA) | 2 |
| I/O (Output digital) | 2 |
| Halfbridge | 6 |
| Fullbridge | 3 |
| Switching current | 3 A @ 85°C |
| Motor current | 10 A |
Interfaces
| CAN interface(s) | 1 |
|---|---|
| CAN FD interface(s) | 1 |
| LIN interface(s) | 1 (optional) |
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | PA66GF30 |
Programming
| Programming software | MRS Applics Studio |
|---|
General Information
| Temperature range | -40°C to +85°C |
|---|---|
| Operating voltage | 8-32 V |
| Current consumption | 50 mA @ 12 V, 33 mA @ 24 V |
| Quiescent current (12V) | 35 µA |
| Quiescent current (24V) | 75 µA |
Order options
| Order no. | Name |
|---|---|
| 1.162.300.0000 (11623000000) |
CAN0 with Wakeup; LIN Master KL30; Pullup 4-7 = Vref
|
| 1.162.304.1000 (11623041000) |
CAN0 with Wakeup; without LIN; VREF; Pullup 4-7 = KL30
|
| 1.162.202.1000 (11622021000) |
CAN0 with Wakeup; LIN Master 12Vref; Pullup 4-7 = KL30
|
