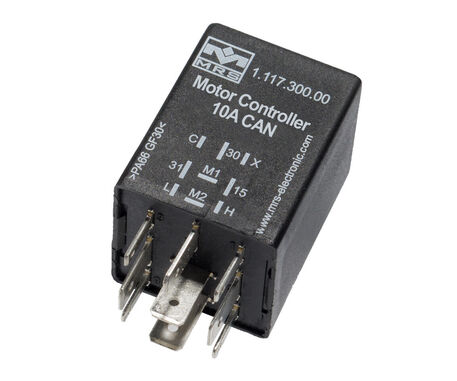

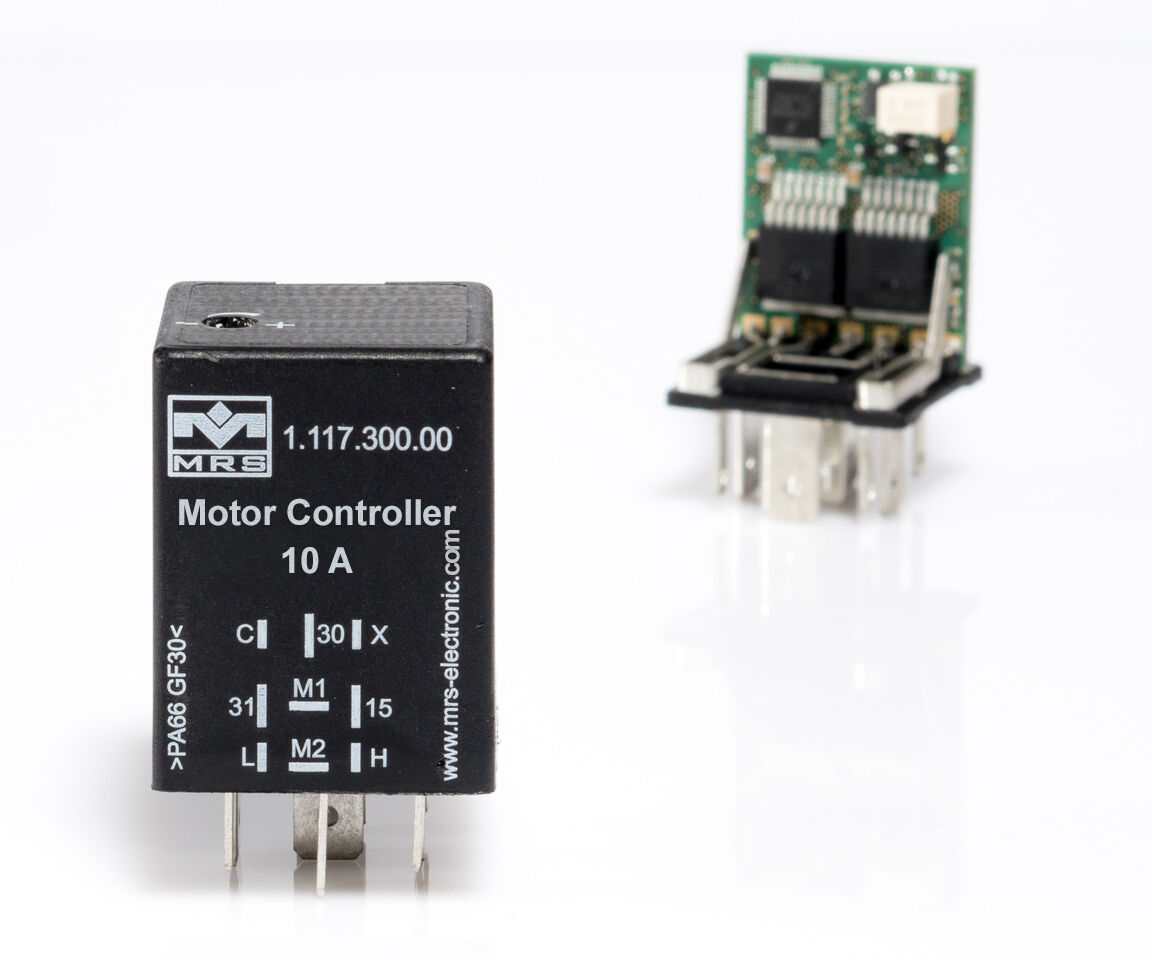

Motor Controller 10 A CAN
go to order options (1117x)
The Motor Controller 10 A CAN is a microcontrollerbased module for automotive and other applications. User configuration and programming facilitate implementation of a wide range of applications and the very compact form factor supports versatile use.
Downloads
Technical details
Inputs and Outputs

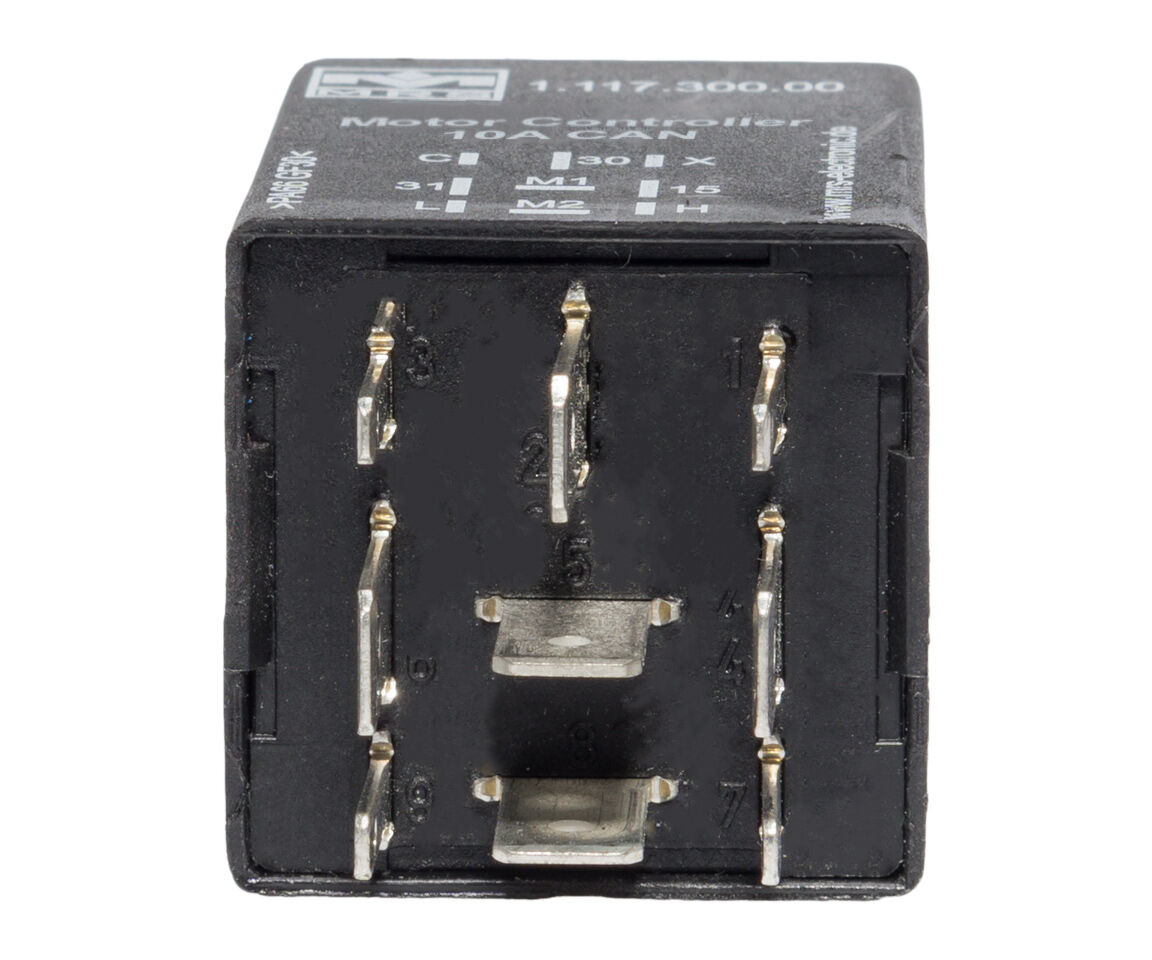

| Number of pins | 9 |
|---|---|
| In-/Outputs (total) | 3 |
| Inputs (total) | 3 |
| Inputs (analog) | 3 |
| Outputs (total) | 1 |
| Fullbridge | 1 |
| Switching current | 10 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | up to IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Quiescent current (12V) | 680 µA |
| Quiescent current (24V) | 1250 µA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.117.300.00 (111730000) |
With potentiometer
|
| 1.117P.300.00 (1117P30000) |
CANopen (CiA401)
|
