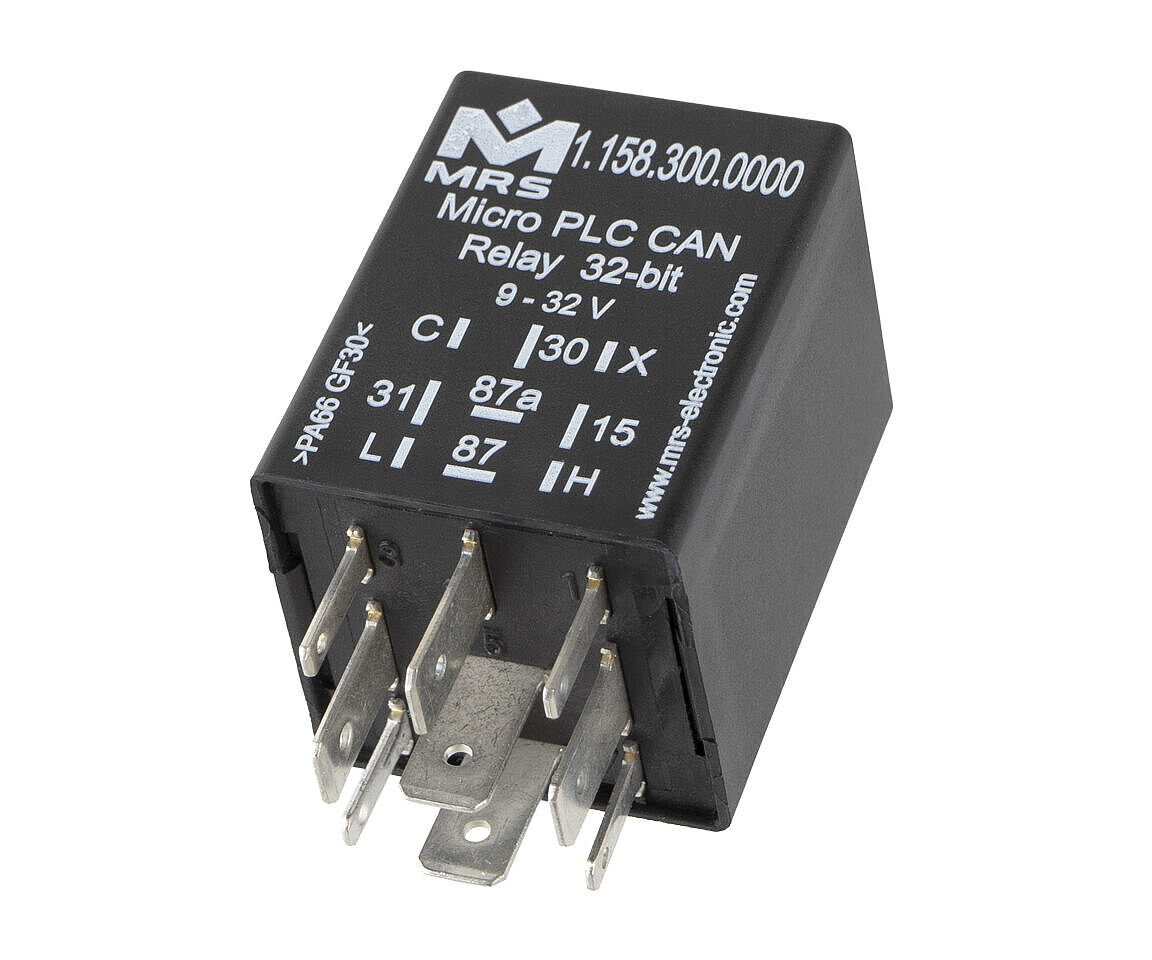

Micro PLC CAN Relay 32-bit

The Micro PLC CAN relay 32-bit is pin-compatible with the Micro PLC CAN 12 V and 24 V and combines them in one product. The compact CAN controller can be used flexibly in a voltage range of 9-32V. With its 32-bit processor, the compact CAN controller delivers even more computing power than the previous version and offers you a wide range of applications in the automotive sector thanks to its free configurability, parameterization and programmability.

Downloads

Data sheet Micro PLC CAN Relay 32-bit (German) Data sheet Micro PLC CAN Relay 32-bit (English)

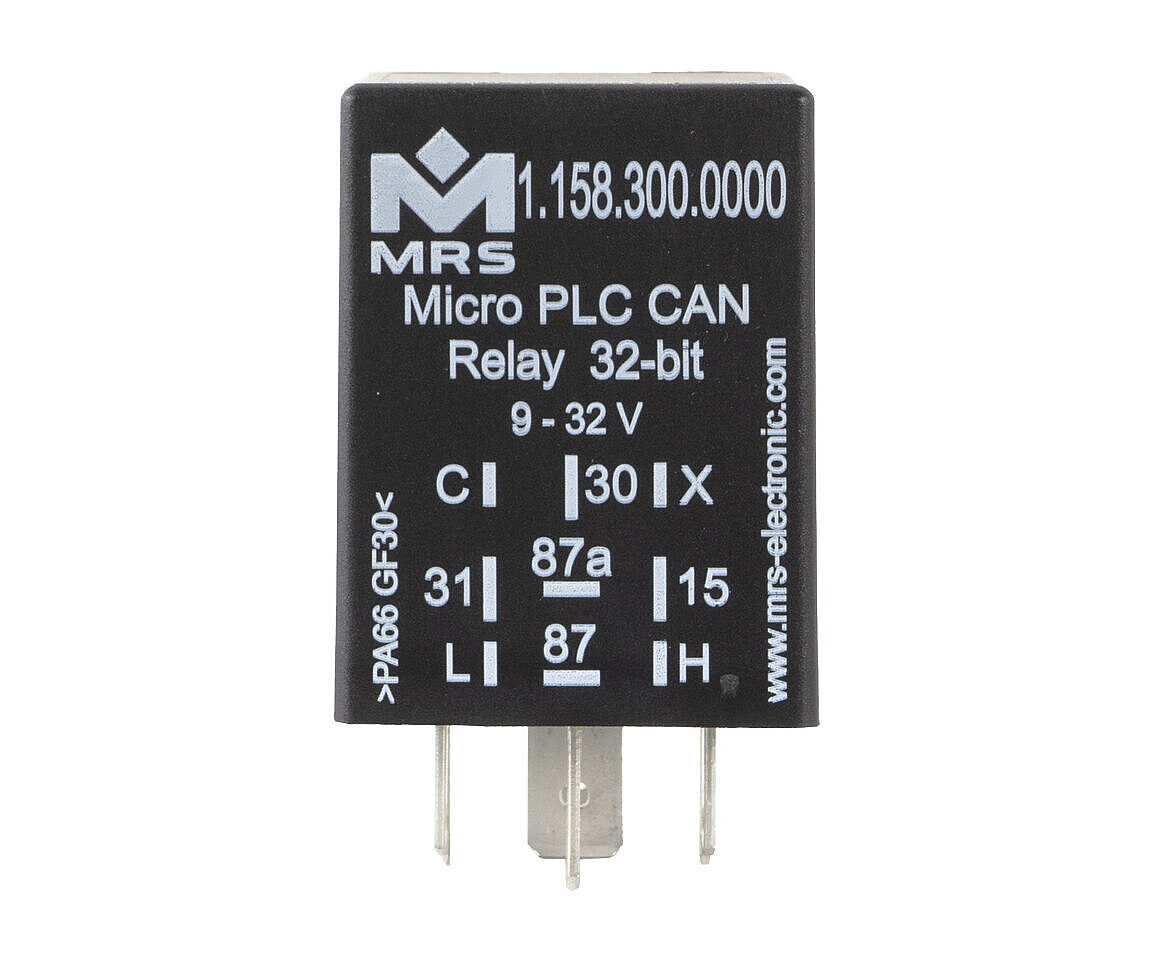

Front view

Connection diagram S40

Connection diagram S41

Technical details

Inputs and Outputs

Number of pins	9
In-/Outputs (total)	4
Inputs (total)	2
Inputs (analog)	2
Outputs (total)	2
Relay outputs	2
Switching current	NO 10 A / NC 5 A

Interfaces

CAN interface(s)	1
CAN FD interface(s)	1

Mechanical Properties

IP rating	up to IP6K8
Housing material	PA66GF30
Dimensions	30 × 30 × 40 mm

Programming

Programming software	MRS Applics Studio

General Information

Temperature range	-40°C to +85 °C
Operating voltage	9-32V
Current consumption	32 mA at 12 V / 19 mA at 24 V
Quiescent current (12V)	25 µA
Processor architecture	32 bit

Markings

Order options

Order no.	Name
1.158.300.0000 (11583000000)	CAN-WU S40 KL15on
1.158.301.0000 (11583010000)	CAN-WU S41 KL15on
1.158.310.0000 (11583100000)	CAN-WU 120R S40 KL15on
1.158.311.0000 (11583110000)	CAN-WU 120R S41 KL15on
1.158.320.0000 (11583200000)	MCC-Relay 9-32V CAN S40 KL15on
1.158.321.0000 (11583210000)	MCC-Relay 9-32V CAN S41 KL15on
1.158.330.0000 (11583300000)	MCC-Relay 9-32V CAN 120R S40 KL15on
1.158.331.0000 (11583310000)	MCC-Relay 9-32V CAN 120R S41 KL15on
