Flasher M3 24 V
go to order options (100729x)

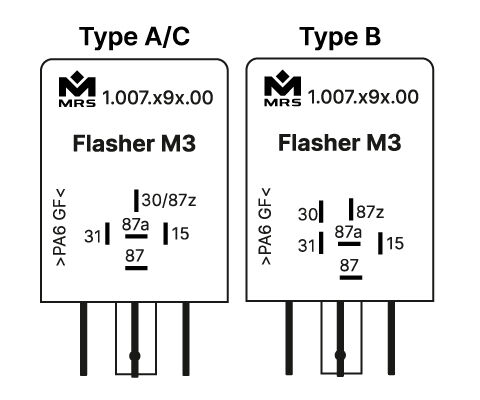

The flasher unit start/stop M3 is used for signal and warning light applications. The flasher can be used in various vehicle types. The supply voltage is connected to terminal 30/87z. When an input voltage is applied to terminal 15 the flasher unit starts immediately, generating 90 +/-30 pulses per minute. The flasher output can switch loads up to 20 A. Higher loads may be switched with a second downstream power relay. The inverted input voltage is present on terminal 87a. Please refer to the chapter housing and base plates for additional housing options.
Technical details
Inputs and Outputs
| Number of pins | 5 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | NC 15 A / NO 15 A |
Interfaces
| Serial Interface(s) | 0 |
|---|
Mechanical Properties
| IP rating | up to IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Realizer |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 14-32 V |
| Blink frequency | 90 +/-30 pulses/min |
| Current consumption | 2 ± 1 mA |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.007.291.00 (100729100) |
Type A, Connection S1
|
| 1.007.292.00 (100729200) |
Type B, Connection S2
|
| 1.007.293.00 (100729300) |
Type C, Connection S3
|
