CAN I/O PLC Waterproof PRO V2
go to order options (1128x)

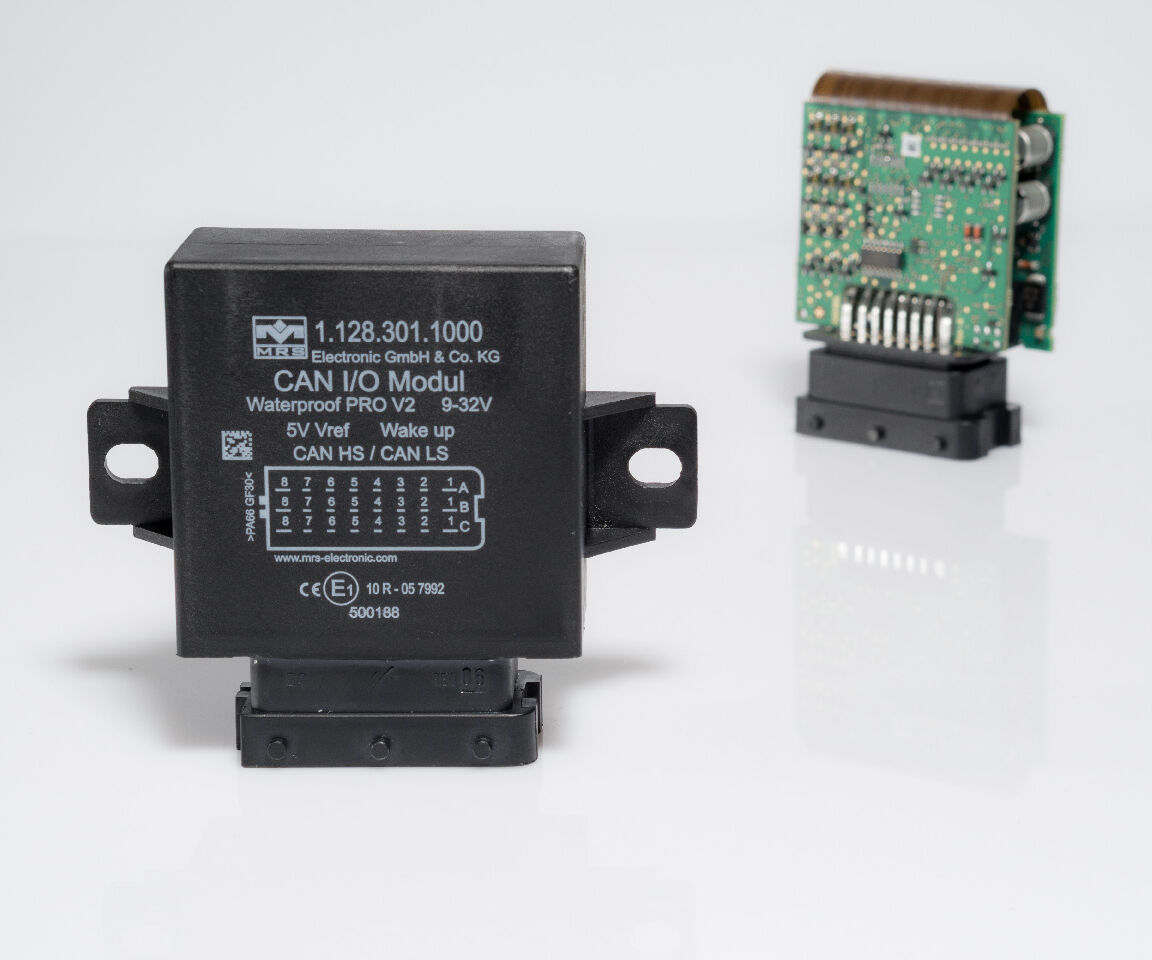

The waterproof CAN I/O PLC Waterproof PRO V2 with 16 I/Os convinces by the various application possibilities in numerous control applications. In addition to eight I/Os that can be configured as inputs or outputs, it offers six analog and two digital inputs. The CAN controller also has integrated protection diodes to limit the free-wheeling voltage generated by the inductive loads.
The module can be used to control four current-controlled proportional valves. The 5 Volt reference output allows additional sensors to be supplied with voltage. The own supply voltage can be measured internally via terminal 30.
Technical details
Inputs and Outputs
| Number of pins | 24 |
|---|---|
| In-/Outputs (total) | 15 |
| Inputs (total) | 7 |
| Inputs (analog) | 6 |
| Inputs (digital) | 1 |
| I/Os (total) | 8 |
| I/Os (Input analog) | 6 |
| I/Os (Input digital) | 2 |
| I/O (Output PWM capable, integrated current measurement INA) | 4 |
| I/O (Output PWM capable) | 2 |
| I/O (Output digital) | 2 |
| Output type high side | 8 |
| Switching current | 3 A @ 85°C |
Interfaces
| CAN interface(s) | 1 |
|---|---|
| Serial Interface(s) | 1 |
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 60 × 80 × 30 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Quiescent current (12V) | 75 µA |
| Quiescent current (24V) | 138 µA |
| Vref current limit | 500 mA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.128.301.0000 (11283010000) |
5V Ref, KL30-Wake-up, CAN-HS, Type B, Connection RS232
|
| 1.128.301.1000 (11283011000) |
5Vref, KL15/CAN-Wake-up, CAN-HS, Type B, Connection RS232
|
| 1.128.321.1000 (11283211000) |
5V Ref, KL15/CAN-Wake-up, CAN-HS, Type D, Connection RS485
|
