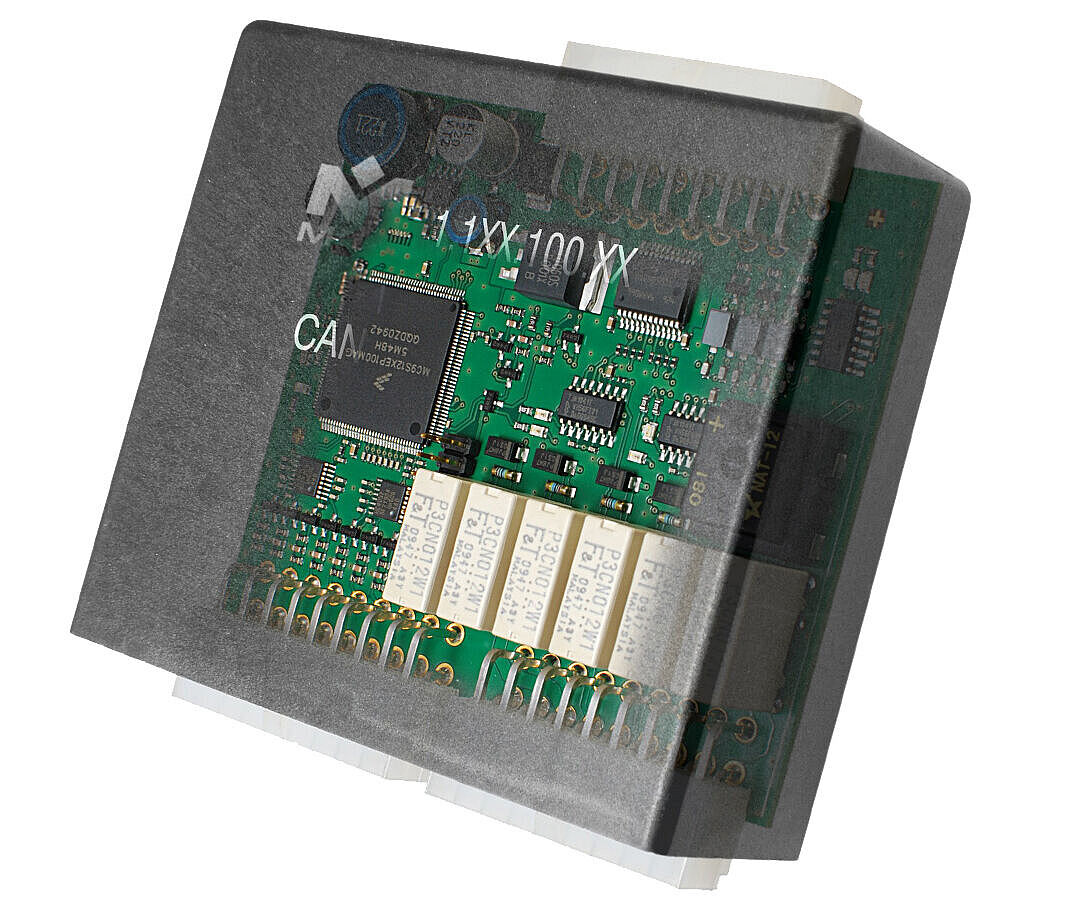

CAN Gateway Module
go to order options (10421xxxx)
The compact car-compatible can gateway module with PLC function is used for the simple expansion of existing vehicle functions with low wiring requirements. It is freely programmable and equipped with 3 can interfaces.
Downloads
CAN Gateway Module
Technical details
Inputs and Outputs
| Number of pins | 54 |
|---|---|
| In-/Outputs (total) | 30 |
| Inputs (total) | 20 |
| Inputs (analog) | 20 |
| Outputs (total) | 10 |
| Outputs (digital) | 4 |
| Relay outputs | 6 |
| Switching current | 3 A |
Interfaces
| CAN interface(s) | 3 |
|---|
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 89 × 95 × 35 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-18 V |
| Current consumption | 31.6 mA |
| Quiescent current (12V) | 300 µA |
| Processor architecture | 16 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.042.100.00 (104210000) |
3x high-speed
|
| 1.042.110.00 (104211000) |
2x low-speed, 1 x high-speed
|
